Auto Electrical Test equipment Battery Tester Conductance
Electrical System Analyzer
MICRO-468 Battery Tester adopts currently the world's most advanced
conductance testing technology to easily, quickly and accurately
measure the actual cold cranking amps capability of the vehicle
starting battery, healthy state of the battery itself, and common
fault of the vehicle starting system and charging system.

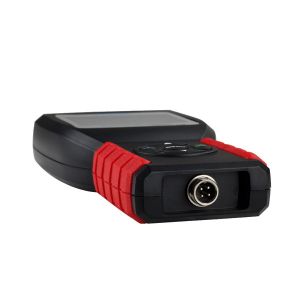

MICRO-468 Battery Conductance & Electrical System Analyzer
MICRO-468 Battery Tester Language:
Asia-Pacific Version: Chinese Simplified. Chinese Traditional.
Japanese, Russian, English.
European and American Version: English, Spanish, French, German,
Italian
Korean Version: English, Koream
Highlights to Get MICRO-468 Battery Tester:
1. Simple, secure, fast, and accurate display test results (the
test takes about 3 seconds)
2. Eight lines with backlight LCD display and humane language
prompted interface
3. Does not emit light, no heat, no discharge, no spark, no
operating dangerous
4. Automatic temperature compensation function with ripple voltage
test function Multi- language menu display
5. Removable replacement test line
6. Dedicated Kelvin test clip
MICRO-468 Battery Tester Advanced Functionality:
Applicable to a variety of models, all kinds of batteries, and a
variety of system mode
Directly detected in the car, do not need to remove the battery
Directly test the battery of the loss of electricity, bad cell
battery
Battery test results include the State of Health %, State of Charge
% and actual CCA capacity.
Scope: suitable for 6V & 12V battery and 12V & 24V starting and
charging system detects
MICRO-468 Battery Tester Specifications:
1) Cold Cranking Amps Measure Range:
| Measure Standard | Measure Range |
| CCA | 100-2000 |
| BCI | 100-2000 |
| CA | 100-2000 |
| MCA | 100-2000 |
| JIS | 26A17-245H52 |
| DIN | 100-1400 |
| IEC | 100-1400 |
| EN | 100-1400 |
| SAE | 100-2000 |
| GB | 100-1400 |
2) Voltage Measure Range: 6-30DCV.
3) Temperature Measure Range: -18°C - +70°C.
4) Cable Length: 120cm (3M optional)
5) Housing Materieal: Acid-resistant ABS plasticd
6) Warranty: One year.
Package including:
1pc x MICRO-468 Battery Tester
1pc x Clip
1pc x User's Manual
1pc x Carrying Bag
