.New Genius K-Touch & Map Programmer includes SS77 ECM 1.61 and Winols 2.24 for free
The New Genius is controlled through a system of icons from your
TOUCH PANEL touchscreen, this makes it extremely easy to use. A

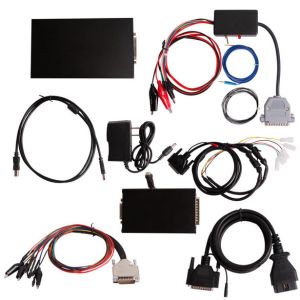

standard 16 pin OBD cable is included and specific connectors to
work on making diagnosis and special cables to do so through direct
connection to the connector or plate ECU.
Notice: Can be installed on both Windows XP and Win7.
Key Features:
Easy to use thanks to its touch screen and intuitive menu.
Completely independent of the PC during the phases of read / write.
System automatic backup.
SD 1 GB expandable memory (expandable to 16 GB)
System updates via USB.
Technical Specifications:
ABS plastic enclosure with ergonomic grip system safe.
LCD display 320 x 240 pixels, CCFL back light with Touch Panel.
Flash memory chip 512K bytes protected.
16 MB RAM memory.
SD card of 1 GB expandable.
LED status SD.
Internal clock with memory.
Lithium 3 volts.
Rechargeable battery 600 mAh 8.4V.
Supply voltage from 12V to 30V.
Communication via K line, L line, CAN-bus 2.0 and J1850.
SS122 XP Operating System CD
1. ECU Chip tunning software: it is unfriendly and you are supposed
to be skilled enough to use it.
2. Boot wiring diagram and instruction.
3. K-touch setup software: the folder "setup3" contains "setup3
manually.zip" and "setup3 xp automatic.exe" , xp user just directly
click "setup3 xp automatic.exe" and follow the prompt to operate;
win7 user firstly extract file "setup3 manually.zip" and get
"raceloc.dll", then manually replace raceloc.dll C:UsersYour PC
NameAppDataLocalDimWareRaceEVO7.0.
4. TF FIX folder contains a video on how to reset the TF program.
Note: change other TF card is not allowed, you have to use the
built-in TF card.
5. How to renew the token video demo. After renew the machine get
30 tokens.
6. Install read me. Txt: contain simple setup instructions.
7. K-touch vehicle list for reference.
8. K-touch install on win7 procedure. Note: disconnect the network
connection when you install and use k-touch, update device and
software is not allowed.
9. K-touch install on windows xp procedure. Note: disconnect the
network connection when you install and use k-touch, update device
and software is not allowed.
10. Decompression software
Feedback:
Tested on:
Simos 18 tested ok. Don't know about simos 12
Tested on many cars Kline an Can and work 100% fine only checksum
need to do manually
All simos,denso mitsu ..all ok
Tested on tricore edc17c10 all ok
EDC17C64 ID & WRITE ok (1.6TDI)
MED17.5.5 ID & READ & WRITE ok
ME7.5 ID & READ & WRITE ok
MED17.5.21 ID & WRITE ok
Sagem 3000 ID & READ & WRITE ok
Opel ME7.6.2 ID & READ & WRITE ok
Mercedes EDC16C2 ID & READ & WRITE ok
Simos 12 & 18 ID & WRITE ok
Checksum recalculated with Genuine Race Evo software for all of my
tunes.
2014 Fiesta Ecoboost 1.0 125hp auto
-> Read ok
-> Write ok
2013 Mitsubishi ASX/Outlander Sport 2.0 4B11 CVT
-> Read ok
-> Write ok
2014 Chevrolet Orlando 1.8 Petrol Auto
-> Read ok
-> Write ok
2015 Mitsubishi Montero Sport/Pajero Sport 2.5DiD 178hp auto
-> Read ok
-> Write ok
Can make Opel Zafira , Combo , Meriva Denso ECU
Tested psa edc17c10 read on boot and test write by obd ok
No support Toyota obd only write med17.5.2. and 17.5.21 (not
tested)
FAQ:Q: Can i use New Genius K-Touch edite the ECU file and write it to new ECU?
A: For all our ECU programmer up to now, like New genuis, K-TAG,
Kess v2 and fgtech. All can read the data from Old ECU and write it
to new one. But cannot change or edite the ECU data you read out
from the old ECU. If you want to change, you can choose ECM
TITANIUM on our website, or something enable you change the ECU
file. Then use our ECU programmer to write it to new ECU.
Another thing you need pay attention is, after you change the data,
you need to use the tool which you use to change the data to do
checksum.
